Product Overview

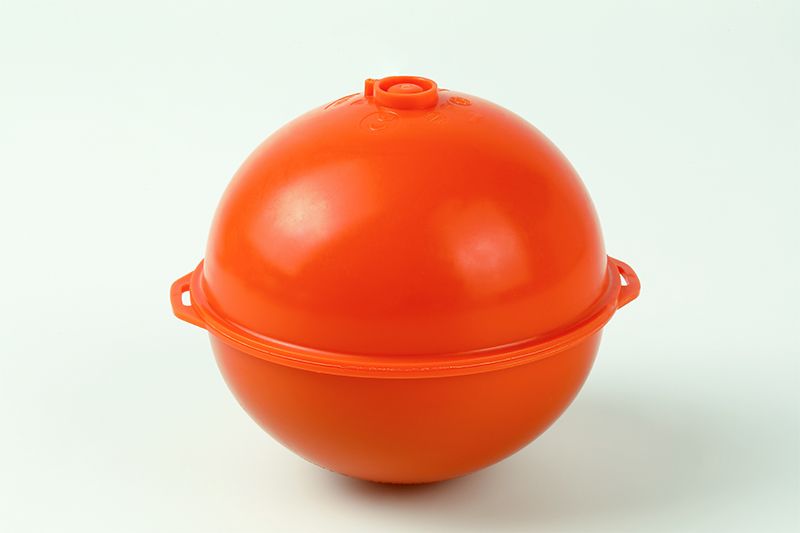

The ED-1500/2 CATV marker ball is a passive RFID locating device designed for long-term burial under urban cable TV networks, broadcasting transmission trunks and radio & TV station external pipelines.

Built with a high-strength corrosion-resistant shell and fully encapsulated internal chip, it requires no external power supply or on-site maintenance. Buried directly above CATV cable routes at regular intervals, it enables construction and maintenance teams to accurately locate buried coaxial lines with a handheld reader, effectively avoiding excavation damage to broadcasting cables and improving CATV network operation efficiency.

Item Number	ED-1500/2
Industry Application	CATV & Broadcasting Cable Networks
Operating Frequency	77.0 kHz
Standard Color	Orange & Black
Outer Diameter	110mm
Weight	380g - 400g
Working Temperature	-45℃ ~ 75℃
IP Protection Grade	IP68
Maximum Detection Depth	1.5m
Maximum ID Read Depth	1.2m - 1.3m
Maximum Write Depth	≤0.4m
Shell Material	High-strength engineering plastic
Chip Type	Passive RFID, no battery required

Customization Options
- Custom laser printing of logos, serial numbers or project markings on the shell
- Custom frequency tuning for special engineering requirements
- Custom packaging for bulk export orders
- Mixed SKU combination packaging available
